Class 150~1500 Flanged End check valve
Standard Material Specifications (CLASS 150Lb~600Lb)
| NO. | Part Name | CS to ASTM | AS to ASTM | SS to ASTM | |
| Type A105 | Type F22 | Type F304(L) | Type F316(L) | ||
| 1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 2 | Nameplate | SS | |||
| 3 | Piston Disc | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
| 4 | Bonnet | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 5 | Gasket | Corrugated SS + graphite | SS + PTFE | ||
| 6 | Bolt | A193 B7 | A193 B16 | A193 B8 | A193 B8(M) |
| Suitable Medium | W.O.G. etc | W.O.G. etc | HNO3,CH3OOH etc | ||
| Suitable Temperature | -29℃~425℃ | -29℃~550℃ | -29℃~180℃ | ||

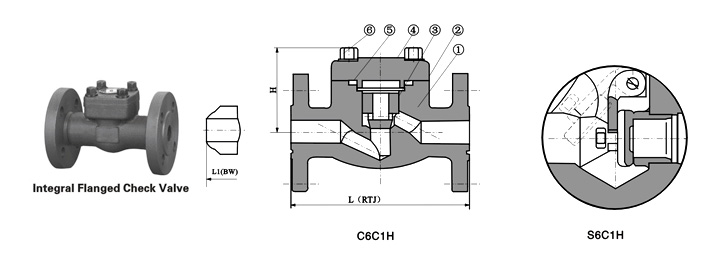

Dimensions(mm) And Weights(kg)
| NPS (in) | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 | ||
| L(RF)L1(BW) | 150 | 108 | 117 | 127 | 140 | 165 | 203 | |
| 300 | 152 | 178 | 203 | 216 | 229 | 267 | ||
| 600 | 165 | 190 | 216 | 229 | 241 | 292 | ||
| H | 150,300 | 61 | 61 | 79 | 95 | 103 | 118 | |
| 600 | 61 | 79 | 95 | 103 | 118 | 135 | ||
| Weights | 150 | RF | 2.56 | 3.37 | 4.37 | 8.17 | 8.94 | 12.64 |
| BW | 1.70 | 1.90 | 2.10 | 5.12 | 5.50 | 7.89 | ||
| 300 | RF | 2.73 | 3.65 | 4.74 | 8.77 | 9.60 | 13.70 | |
| BW | 1.90 | 2.10 | 3.00 | 5.12 | 6.60 | 7.85 | ||
| 600 | RF | 3.00 | 4.00 | 5.83 | 9.47 | 10.10 | 15.6 | |
| BW | 2.00 | 3.12 | 4.25 | 7.25 | 8.56 | 13.60 | ||
