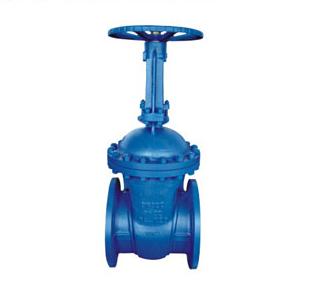

PN16~40 Cast Steel DIN Rising Stem Gate Valve F5 Series
PN16~40 Cast Steel DIN Rising Stem Gate Valve F5 Series
Product Description


PN16~40, DN40~600
Design and manufacture: DIN3352
Face to face: DIN3202-F5, EN558-1
End flange Dimensions: DIN2543(PN16), DIN2544(PN25), DIN2545(PN40), EN1092-1
Pressure test: DIN3230, EN12266-1
The size of serial, valve connecting flange can be design according to customers’ requirement.

PN16~40 DIN Rising Stem gate valve F5


Standard Material Specifications

NO.

Part Name

Material

NO.

Part Name

Material

1

Body

GS-C25+13Cr

11

Nut

A194 2H

2

Wedge

GS-C25+13Cr

12

Gland

GS-C25

3

Stem

A182 F6

13

Nipple

Brass

4

Nut

A194 2H

14

Stem Nut

A439 D2

5

Bolt

A193 B7

15

Retaining Nut

Carbon Steel

6

Gasket

Graphite

16

Handwheel

A536

7

Bonnet

GS-C25

17

Nameplate

Stailess Steel

8

Packing

Graphite

18

Nut

Carbon Steel

9

Pin

Carbon Steel

19

Grub Screw

Carbon Steel

10

Gland Eyebolt

A193 B7








Dimensions(mm) & Weights (kg)

PN16

DN

40

50

65

80

100

125

150

200

250

300

350

400

500

600

L

240

250

270

280

300

325

350

400

450

500

550

600

700

800

H

365

410

432

478

565

678

790

980

1190

1410

1550

1750

1900

2600

W

180

200

220

250

280

300

300

350

400

450

500

550

700

800

Weight(kg)

15

20

29

34

45

65

90

135

205

330

450

689

948

1420


PN25

DN

40

50

65

80

100

125

150

200

250

300

350

400

500

600

L

240

250

270

280

300

325

350

400

450

500

550

600

700

800

H

365

410

440

488

585

695

802

990

1200

1420

1560

1760

2180

2610

W

180

200

220

250

280

300

300

350

400

450

500

550

700

800

Weight(kg)

17

21

32

35

50

75

95

155

242

345

472

695

1142

1450


PN40

DN

40

50

65

80

100

125

150

200

250

300

350

400

500

600

L

240

250

290

310

350

400

450

550

650

750

850

950

1150

1350

H

365

420

452

498

595

708

810

1010

1220

1440

1580

1780

2200

2630

W

180

200

220

250

280

300

350

400

500

550

600

700

750

800

Weight(kg)

18

22

30

38

51

70

110

225

270

500

665

850

1350

1609
