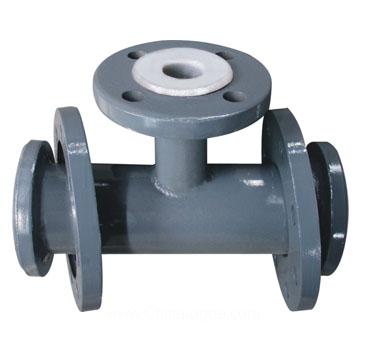

The one-piece excecution with PFA assures a perfect flow in the base body and at the outlet.
The manufacturing of our PFA-Tees is done by injection moulding (Extruder). For tees with nominal widths larger than DN 100, we rely on our approved paste liner. Both manufacturing
technologies assure a specially smooth and easy-to-clean surface.

Lining-Materials:
• up to diameter nominal DN1 100 (one-piece): PFA (virgin or
conductive)
• from diameter nominal DN1 125 (two-piece): PTFE (virgin or
conductive)
• up to diameter nominal DN1 300 (two-piece): PP
PFA-lined tees are also available as Lateral-Tees.
Different lining thicknesses and flange designs on request.
Flange design:
• loose-loose-loose
• fix-loose-loose
• fix-fix-fix

Other pressure rates:
• PN 16
• PN 25
• PN 40
Material: carbon steel and stainless steel
Special features: earthing studs, earthing lugs, flange stopper,
final painting.
